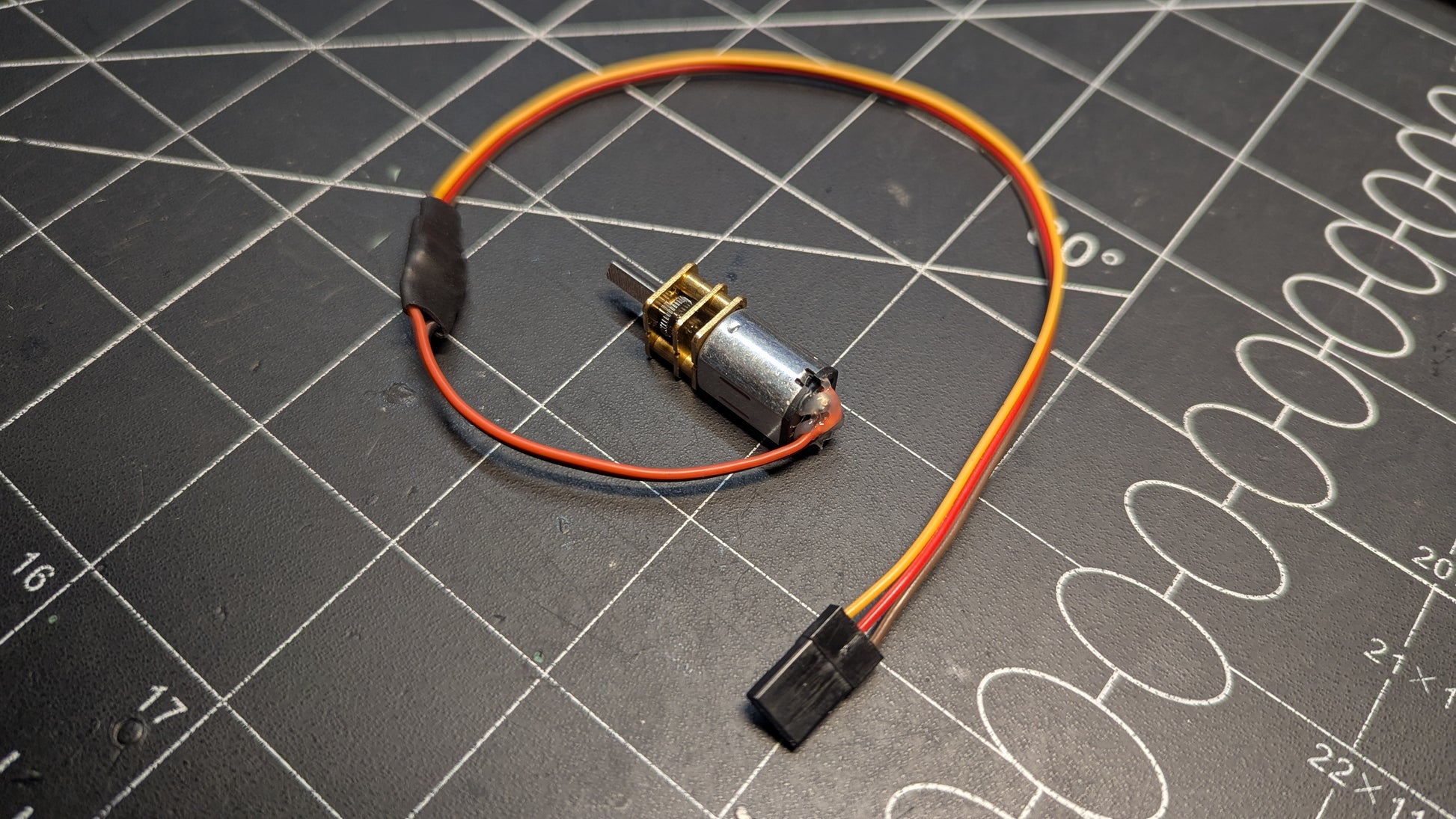

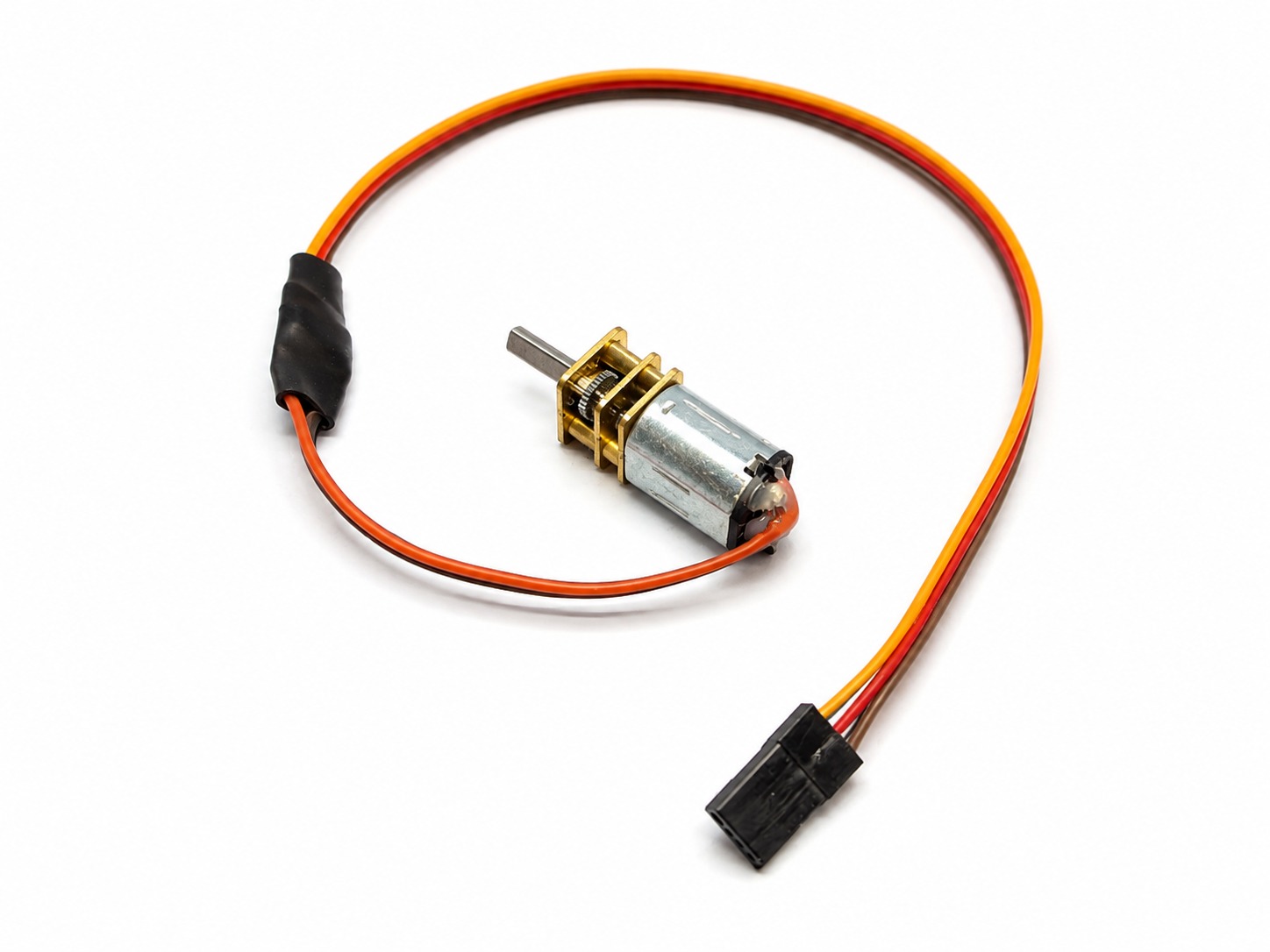

Geared Motor - N20 Plus

Meet the N20 Plus, a compact gearmotor engineered for seamless integration with the new LoR Core V3 robotics platform.

Details:

• Rated for up to 6vdc
• PWM servo style speed control
• 300rpm 0.025Nm @ 0.04amp
• Stall 0.1Nm @ 1amp

Key Highlights:

Integrated Driver

The N20 Plus combines a classic N20 gearmotor with an onboard brushed motor driver, simplifying wiring and reducing system complexity.

Servo-Compatible Interface

Designed to work like a standard RC servo, the N20 Plus uses the same 3-wire connector for power, ground, and signal, making it plug-and-play with the LoR Core V3’s I/O ports.

Optimized for LoR Core V3

Perfectly suited to the voltage, control signals, and current capabilities of the LoR Core V3, ensuring reliable and consistent operation in robotics applications.

Versatile Applications

Ideal for MiniBot drivetrains, actuators, and other mechanisms where precise, lightweight DC gearmotor solutions are needed.

Full technical specs and performance data will be published soon.
