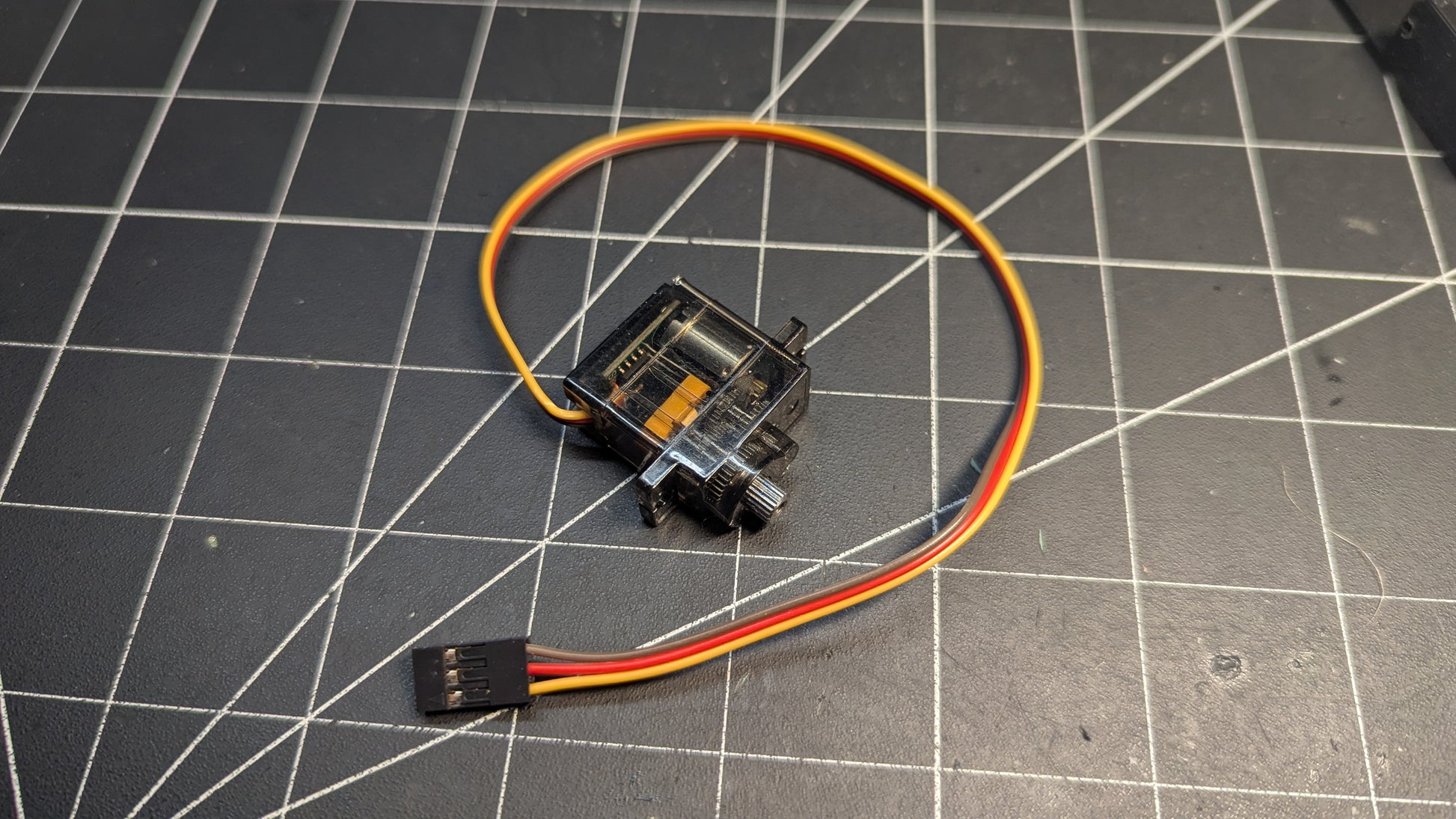

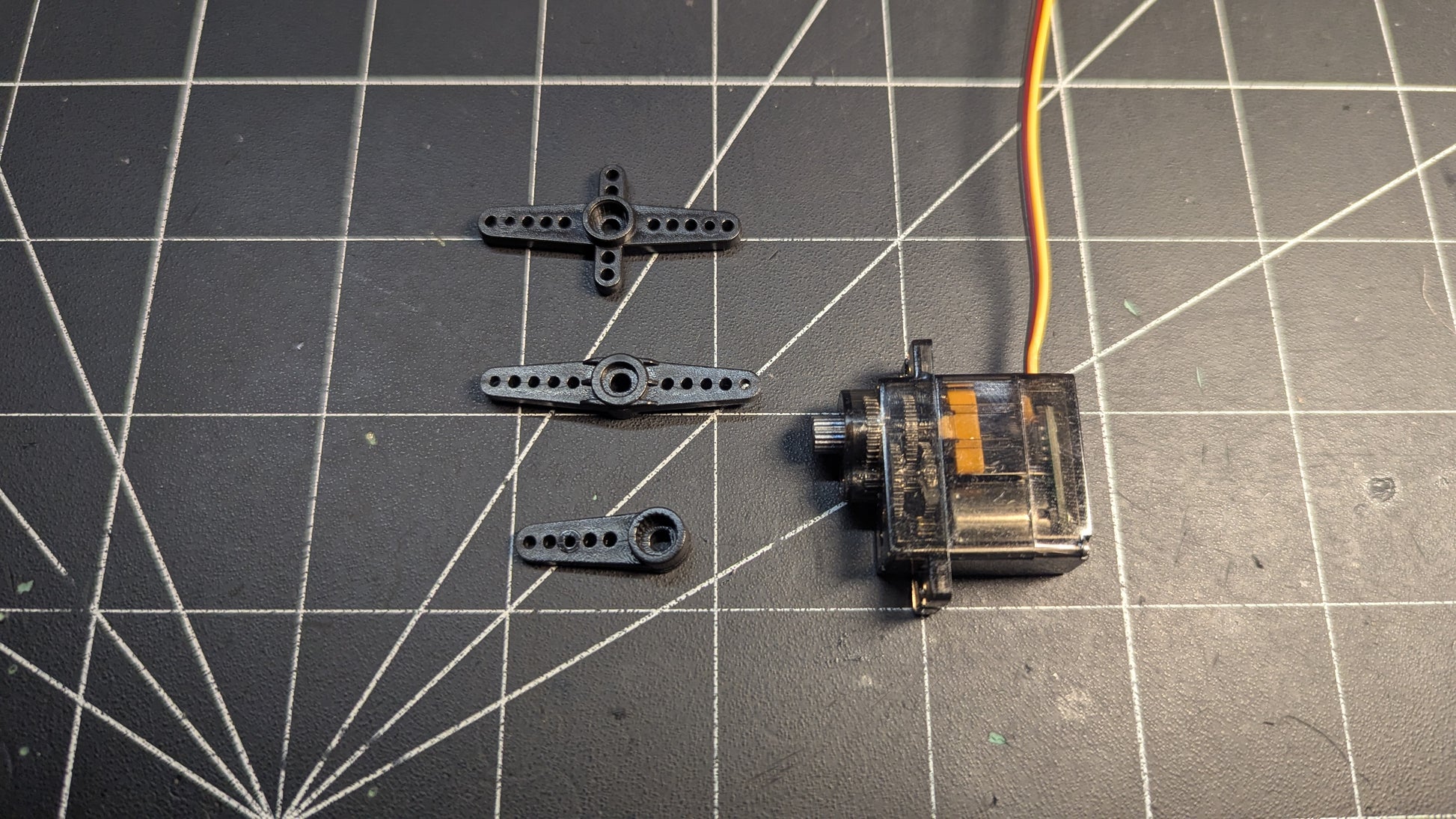

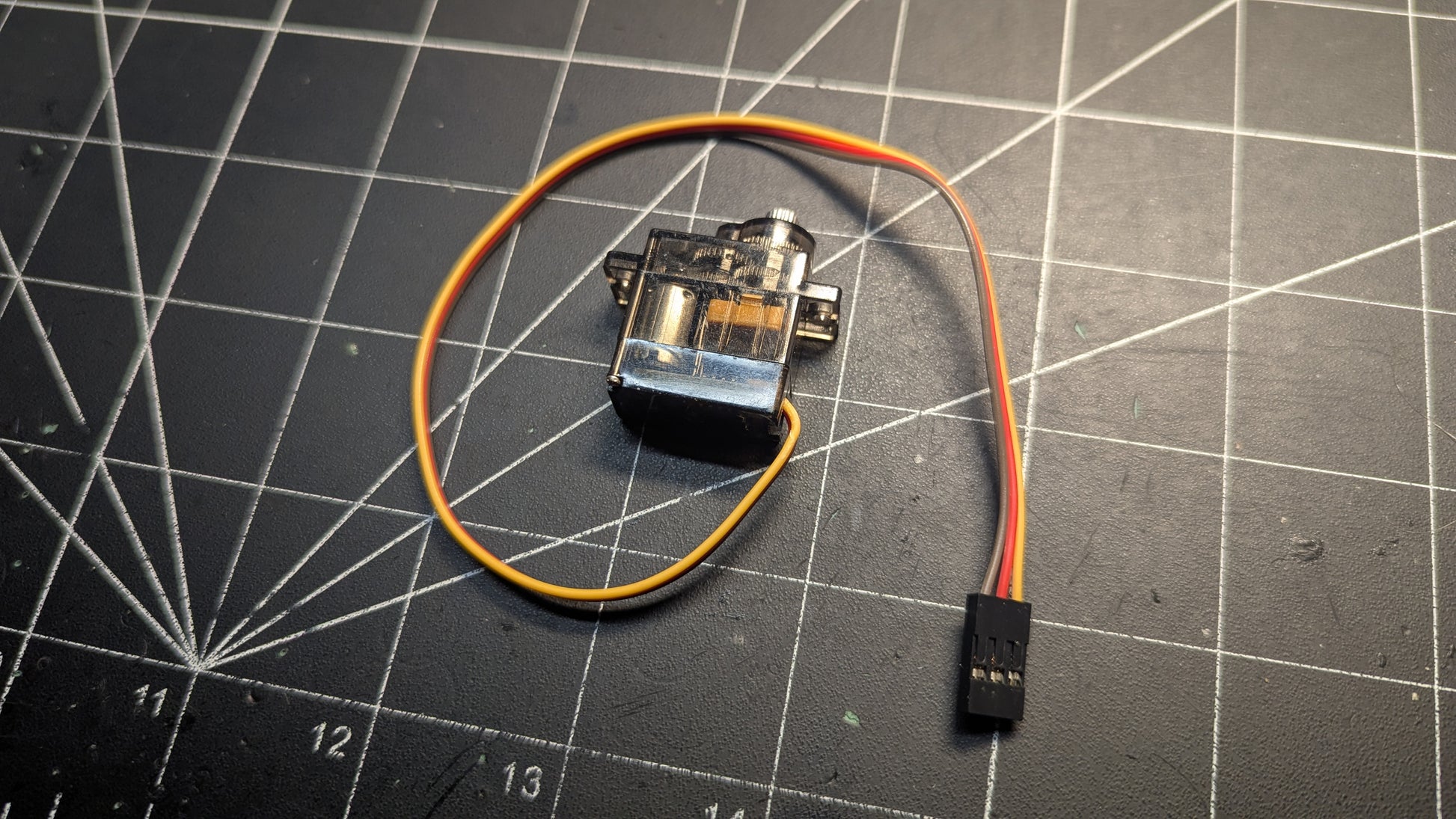

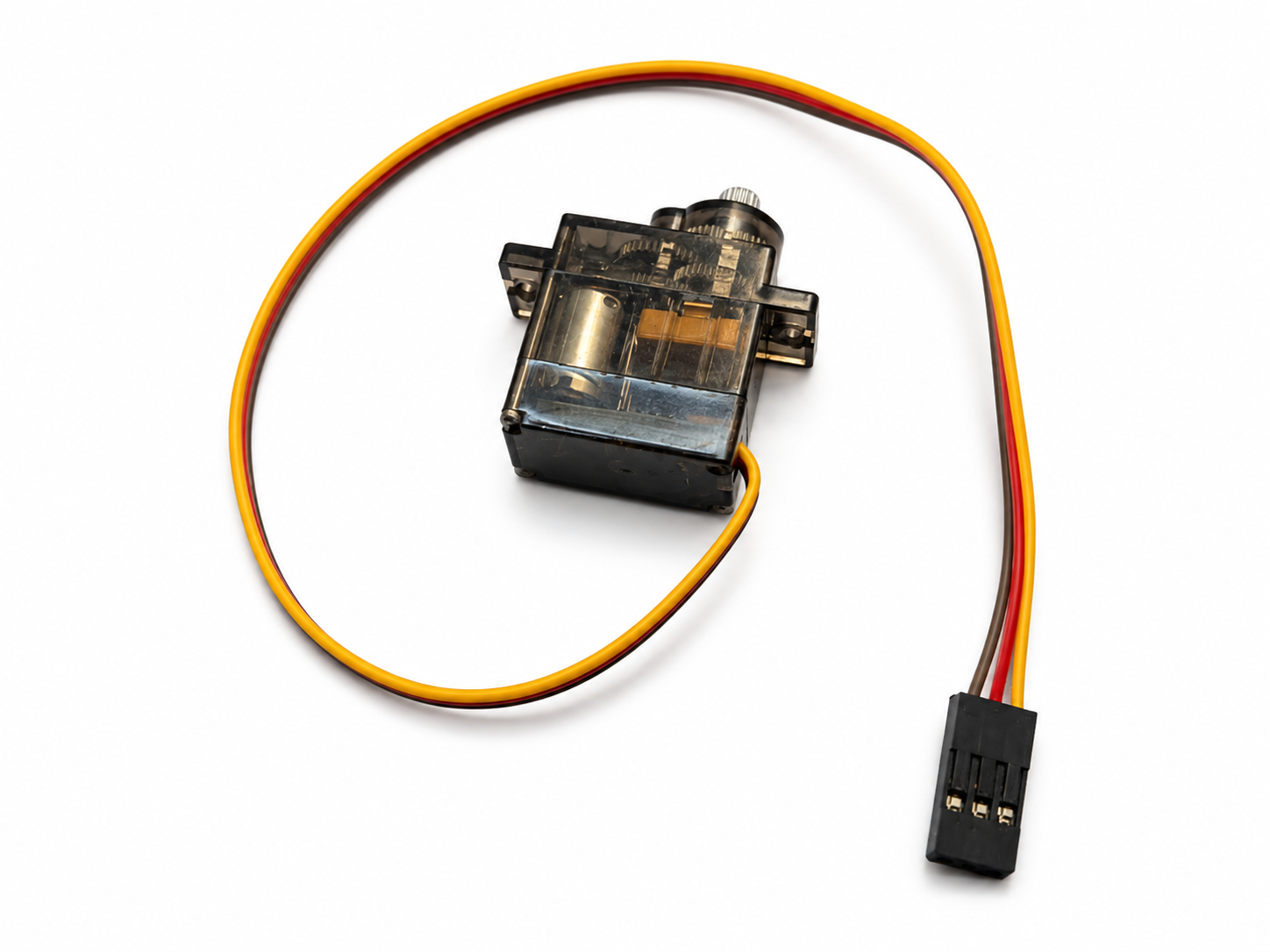

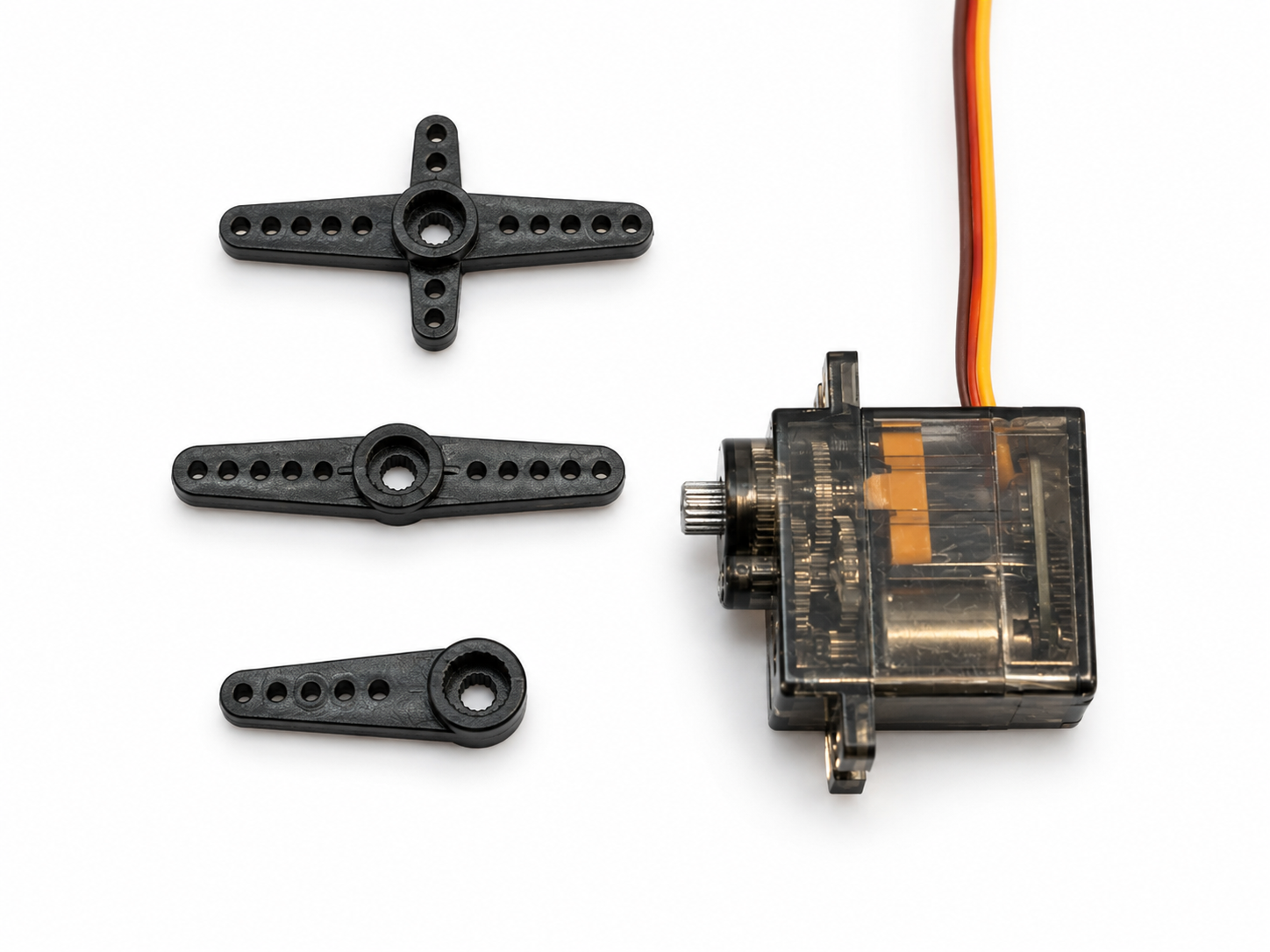

Servo Motor - MG90

Servo Motor - MG90

Regular price $4.50 CAD
Regular price Sale price $4.50 CAD
Sale Sold out
Motion Type

The MG90 Servo Motor is a robust 9g micro servo with metal gears, designed for precise motion control and fully supported by the LoR Core V3, which is engineered to handle multiple servos reliably in advanced robotics applications.

Details:

  • Operating voltage 4.8 V – 6.0 V DC Standard for small RC servos
  • Operating current (no load) ~100 – 250 mA Idle or light load
  • Stall current 800 – 1000 mA @ 6 V Momentary peak
  • Stall torque 1.8 kg·cm @ 4.8 V<br>2.2 kg·cm @ 6.0 V ≈ 0.18 N·m @ 6 V
  • Speed 0.12 s/60° @ 4.8 V<br>0.10 s/60° @ 6.0 V Standard test speed
  • Weight ≈ 13 g “9 g class” marketing label

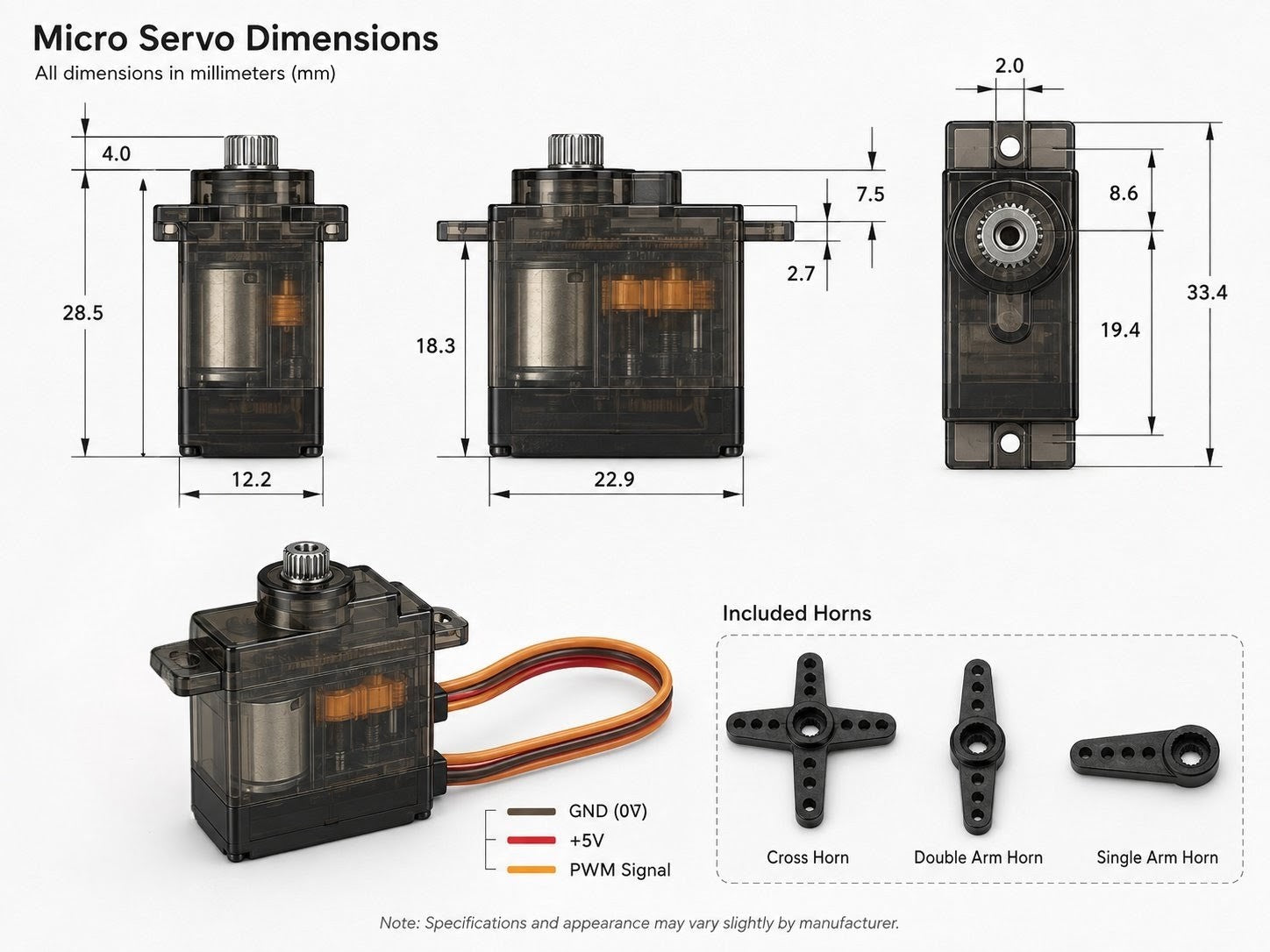

  • Dimensions 22.8 × 12.2 × 28.5 mm Shaft to mount face ≈ 10 mm
  • Control signal 50 Hz PWM, 1.0–2.0 ms pulse width

Rotation type (depending on your selection)

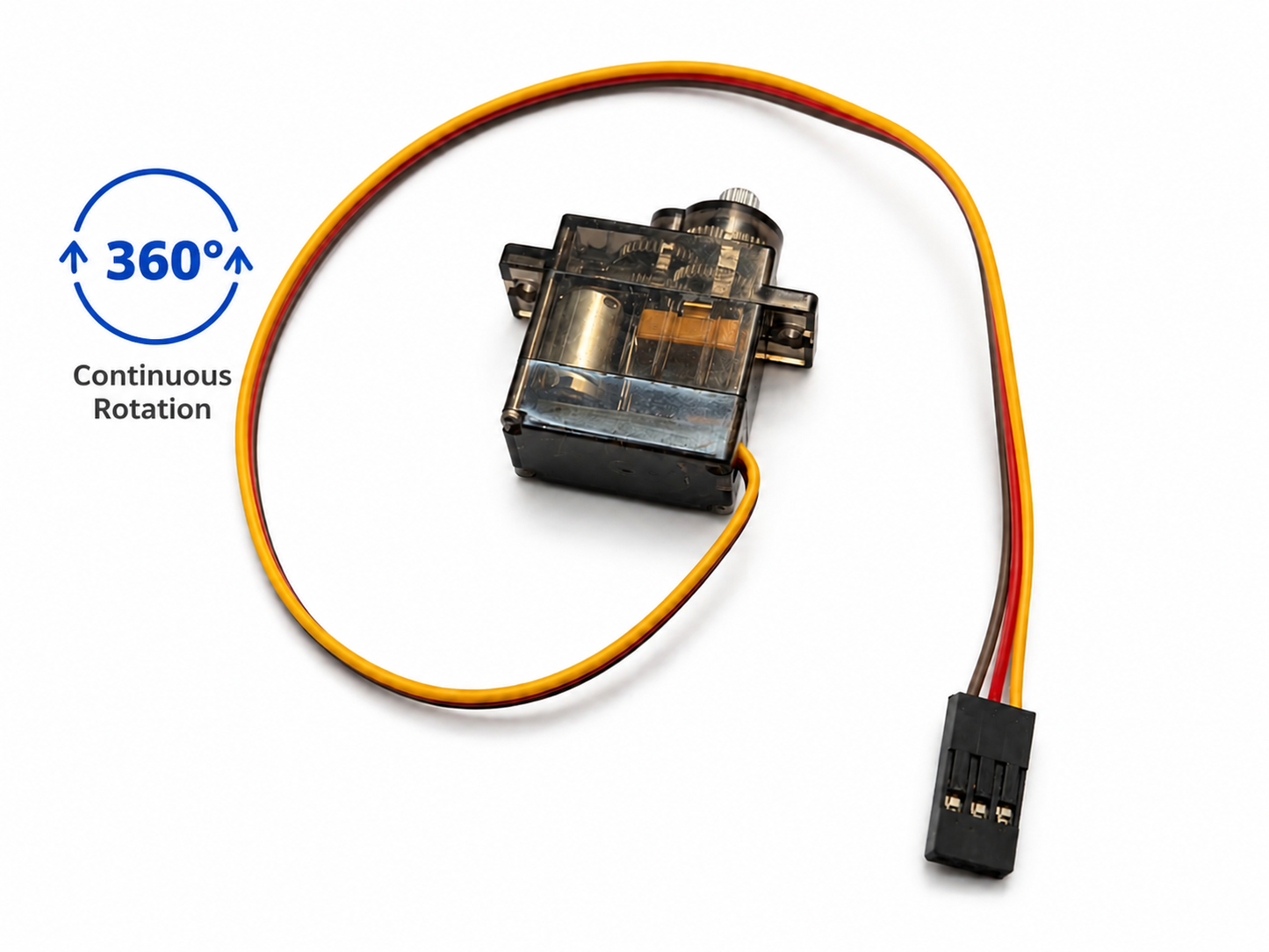

  • Continuous rotation (speed control in both directions)

      OR

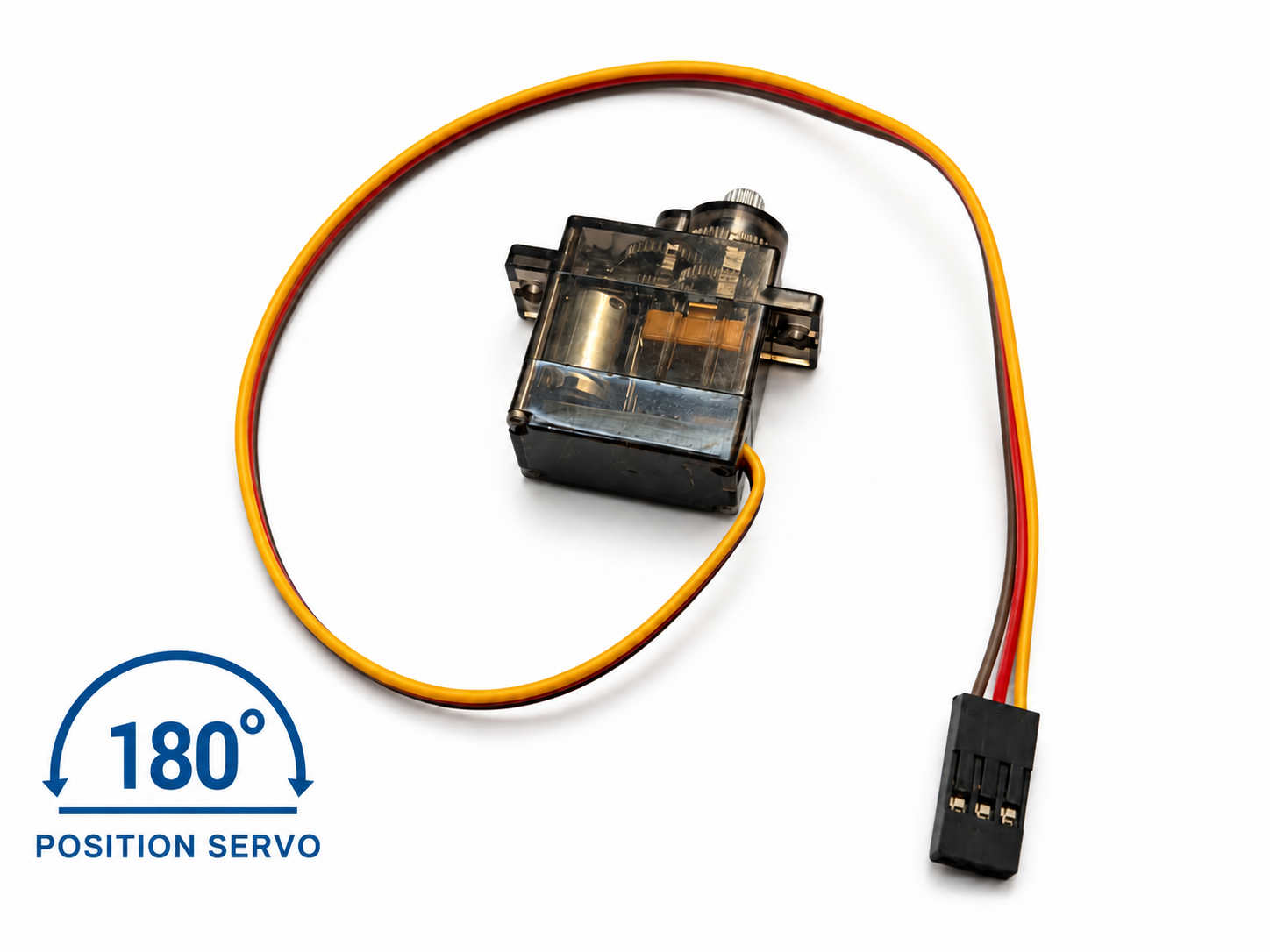

  • Position 180° (positionable from 0-180°)

Key Highlights:

Compact and Lightweight

Weighs only 9 grams, ideal for small-scale robotics, precise mechanisms, and lightweight designs.

Metal Gear Construction

Delivers increased durability and resistance to wear compared to plastic-geared servos, ensuring long-lasting performance under load.

Standard Servo Interface

Uses standard RC PWM control signals and a 3-wire connection for easy integration.

Versatile Applications

Perfect for MiniBots, robotic arms, grippers, steering systems, and any project requiring precise and responsive motion control.

Detailed specifications, torque curves, and performance data will be published soon.
